Impact and corrosion resistant, these polycarbonate enclosures resist chipping and cracking. They are used as insulated electrical junction boxes, terminal wiring boxes, instrument housings, and electrical control boxes. They have internal studs for mounting DIN rail. UL listed.

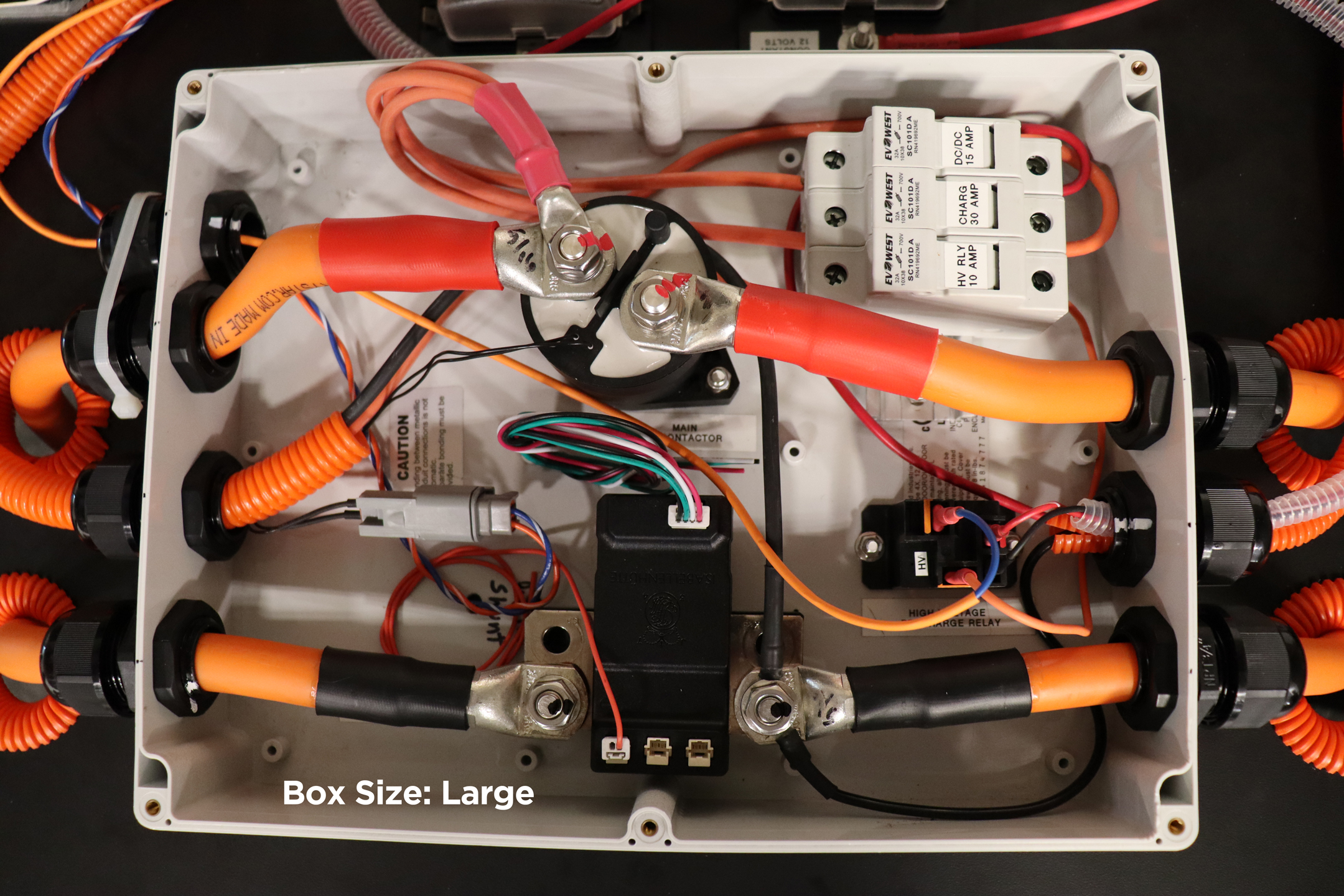

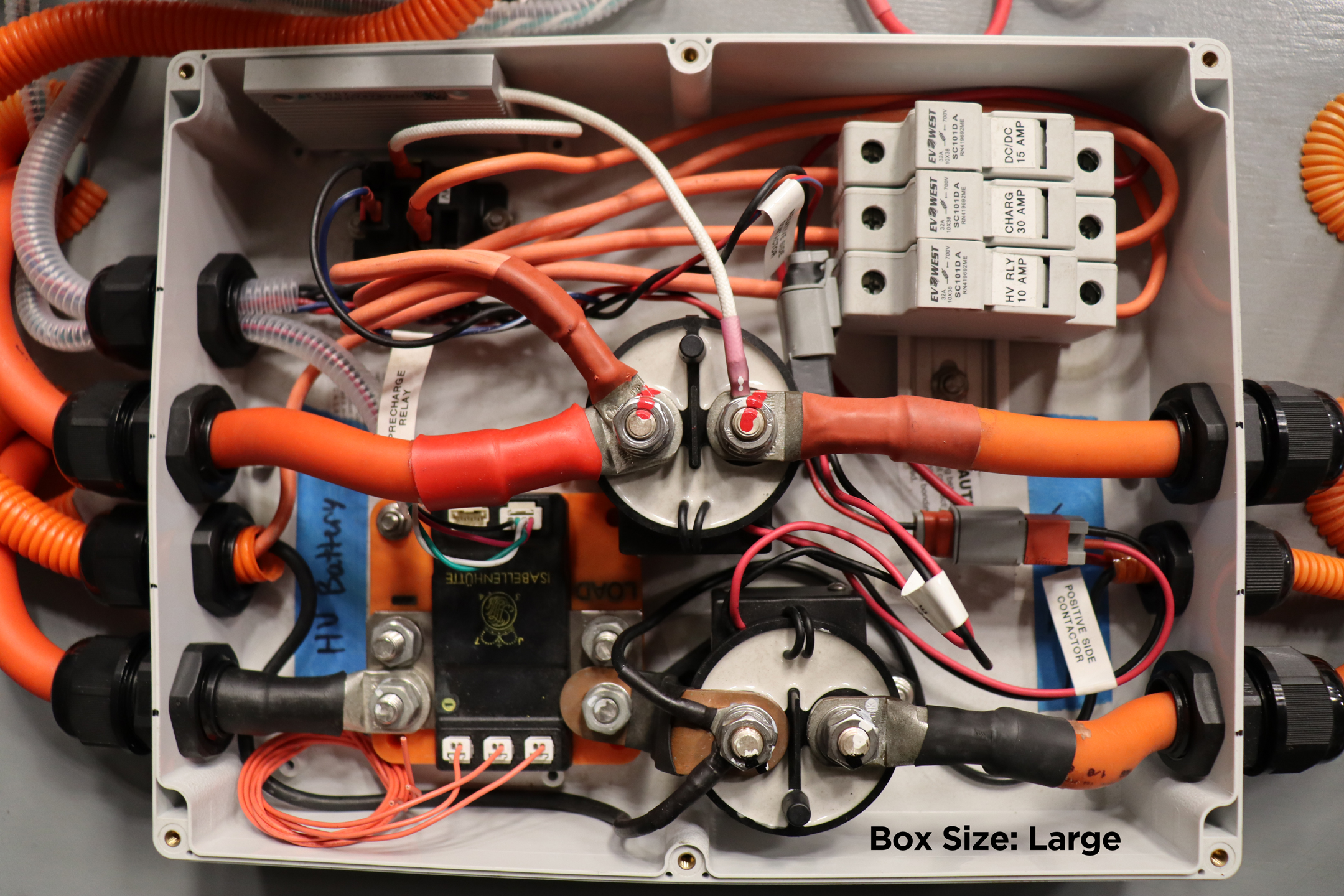

**Image is not of actual box, please refer to dimensions and detailed specs below.
Enclosures have a polyurethane gasket, four 3/16 inch dia. mounting holes, and corrosion-resistant polyamide cover screws. Working depth (area available for component mounting) is approximately 0.5 inch less than overall depth. Opening size is approximately 0.5 inch less than overall height and width. With Lift-Off Cover
Overall Size:
Height: 11.8 Inch
Width: 9.1 Inch
Depth: 4.4 Inch
Part: 1343 Light Gray, 1343-C Light Gray / Clear Lid, 1343-DG Dark Gray
Click Here for Detailed Specs
